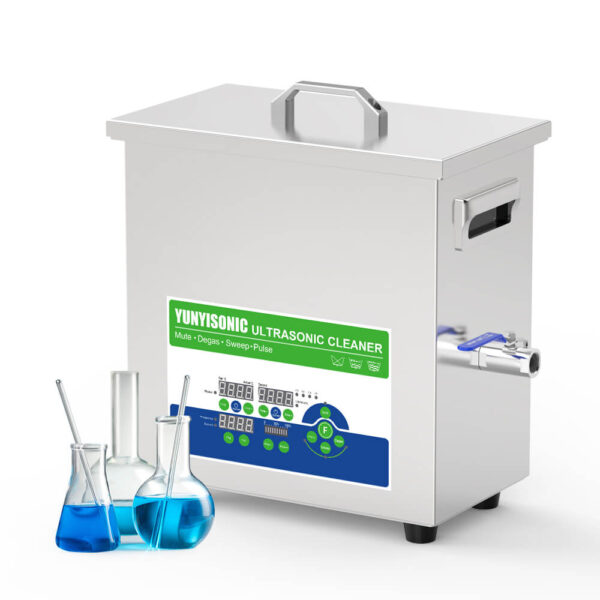

10L 600W 20kHz Lab Ultrasonic Cleaner | Assisted Emulsification, Homogenization & Dispersion Sonication System

High Quality Scientfic Ultrasonic Cleaning of Lab Glassware – Fast & Effective

Product Features:

• 6 x 20kHz 100 Watts Transducers – 600 Watts Efficient
• Generous 10L Tank Capacity & Dimensions 30x24x15cm
• 1 – 9999s Digital Time Setting
• Heating Function Room Temperature – 80℃ Range
• Secure Wire Cleaning Mesh Basket
• Yunyisonic ultrasonic cleaner meets CE + RoHS + FCC (“Limit the use of certain hazardous substances”) standards and comes with a 1-year “Free Parts” warranty

Specification:

Box Contents:

1 x Professional Ultrasonic Cleaner
1 x Durable Mesh Cleaning Basket
One cover, one power cord, one manual warranty card certificate of conformity.

Packing type:

One unit filled with thick foam, then standard export corrugated carton or wooden box.

More Products:

Yunyisonic YL Series Laboratory Ultrasonic Bath Assisted Extraction Emulsification Homogenization Equipment
Capacity: 3.2L~30L
Ultrasonic Power:100~1400W
Function: Noise Reduction + Sweep Frequency + Pulse + Degassing + Power Regulation
Visual displays for power, current, and frequency assist in data recording
Frequency Options:17~200kHz optional
Customizable: Low / High / Two / Three / Four frequency
Single frequency: 17, 20, 25, 28, 33, 40, 53, 68, 80, 120, 132, 200kHz
Dual frequency: 28/40, 40/68, 40/80, 40/120, 80/120kHZ
Triple frequency: 40/80/100kHz, 40/80/120kHz, 28/42/53kHz, 28/40/120kHz, 33/90/135kHz
Four frequency:25/50/80/120kHz, 40/80/100/160kHz, 40/80/120/170kHz

Ultrasonic Frequency Range and Application Guide

Frequency Range: 17kHz–28kHz
With longer wavelengths, low-frequency ultrasonic waves generate large but uneven cavitation bubbles. The collapse of these bubbles produces significant force, making it ideal for:

• 20kHz–25kHz: Assisting experiments such as wastewater treatment, algae inhibition and removal, dispersion of large-particle powders, emulsion extraction, and the treatment of hard-to-degrade organic substances.
• 28kHz: Best suited for rough cleaning tasks, especially heavy-duty applications like removing heavy oils, rust, and stubborn stains.

Frequency Range: 33kHz–40kHz
Moderate wavelengths generate a balanced number of cavitation bubbles and moderate collapse force. This makes medium-frequency ultrasonic waves suitable for:

• Standard cleaning tasks and routine laboratory experiments, including promoting fusion, catalysis, powder dispersion, and cleaning regular laboratory glassware.
• 40kHz: Known as the general-purpose ultrasonic frequency, ideal for multi-functional like household, commercial.

Frequency Range: 68kHz–200kHz
Shorter wavelengths generate dense and uniform cavitation bubbles. The collapse of these bubbles delivers gentle force, creating a refined ultrasonic field ideal for delicate and high-precision tasks:

• 68kHz–80kHz: Suitable for cleaning complex parts, as small cavitation bubbles penetrate micro- to nano-sized blind holes, removing contaminants or dust.
• 120kHz–200kHz: Preferred for precision cleaning in micro- and nanofabrication. Applications include:
  • Cleaning micron and nano-sized blind holes and through-holes.
  • Assisting in dispersing micro- to nanoscale particles.
  • Extracting intracellular substances.
  • Catalyzing the synthesis of new materials.
  • Removing particles from precision optical components and highly sensitive parts like wafers.

Laboratory Research Application

Yunyisonic Shenzhen Co., Ltd. is a leading ultrasonic equipment manufacturer. Yunyisonic YL series ultrasonic assisted equipment offers innovative ultrasonic technology solutions that support a wide range of laboratory applications and research fields, covering diverse industries such as universities, bioengineering, healthcare, food engineering, new materials research, environmental protection, and agriculture, including biological sample processing, equipment cleaning, and material synthesis.

1. Ultrasound Assisted Biological Sample Processing
Ultrasonics efficiently break cell walls to extract DNA, RNA, proteins, or prepares cell extracts. It also supports cell dissolution, nucleic acid extraction, and biological and chemical pre-treatment tasks like emulsification, dispersion, separation, homogenization, defoaming, dissolution, and mixing.

2. Ultrasound Assisted Cleaning Lab Equipment and Medical Surgical Instruments

Ultrasonics thoroughly clean laboratory tools such as glassware, flasks, beakers, test tubes, centrifuge tubes, cell culture dishes, and PCR plates to improve the cleaning process and significantly save laboratory operation time, and ensure precise and pollution-free laboratory experimental research environment.

3. Ultrasound Assisted Extraction (UAE) of Natural Pigment and Spice and Food Colorants

Ultrasonic waves break plant cell walls and facilitate the dissolution of natural pigments and bioactive ingredients into solvents, achieve easy and efficient ultrasonic assisted extraction (UAE) for bioactive components from plants and food, pigments, and essential oils, enhancing purity and yield.

4. Ultrasound Assisted Catalytic Activation
Ultrasonic technology enhances fermentation processes, activating and promoting the release of yeast, enzymes, and nutrients, boosting the quality and yield of beverages and fermented foods products.

5. Ultrasound Assisted Synthesis
Ultrasonic waves enhance reaction efficiency through mixing diverse materials and dispersion components, aiding in the creation and development of composite or innovative or new materials for advanced research application.

6. Ultrasound Assisted Environmental Solutions
Ultrasonic waves accelerate pollutant degradation and degradation in wastewater treatment, improving treatment efficiency. It also assists in removing and degrading pollutants during soil remediation. For example, the immersible ultrasonic transducer pack vibration bar, rod and plates are used to remove algae from lakes or rivers.

Applications of Yunyisonic YL series ultrasonic assisted equipment: reparation of biological samples, cell disruption and extraction, liquids mixing and catalysis, dispersion and fusion of small particles, preparation of suspensions, cannabis extraction and purification, cleaning of laboratory glassware, ultrasonic chemical reactions, chemical synthesis, biopharmaceutical synthesis, biodegradation of materials, recombination, extraction of traditional Chinese medicine, cleaning of precision instrument parts, and complex blind holes and narrow gap, etc.

Detailed visual examples support each cleaning application, making it easy to grasp the versatility of ultrasonic technology in different settings across scientific, industrial, environmental, commercial, and household sectors.

Why Choose Yunyisonic

• Sweep Frequency Adaptive Technology: Ensures uniform cleaning by eliminating blind spots, improving sound field structure, and addressing uneven standing wave fields.
• Wide Frequency Range (20-200kHz): Capable of cleaning various objects with different shapes and sizes, offering versatile cleaning performance.
• Long-Term Operation: The digital timer supports up to 9999 seconds of continuous operation, perfect for heavy-duty cleaning and uninterrupted tasks.
• Stable Performance: Equipped with advanced full-bridge self-excited circuit boards and matching transducers, low heat generation for long-lasting performance. At the same time, this design helps reduce noise, making it softer. It provides a different experience compared to using desktop ultrasonic cleaning equipment and portable ultrasonic cleaners.
• Comprehensive after-sales service: The manufacturer provides free spare parts and a 1-year warranty, with 5 * 8-hour customer service online to ensure timely support for users in case of any issues or concerns, including those related to specific applications such as commercial, retail, and hotel settings.
