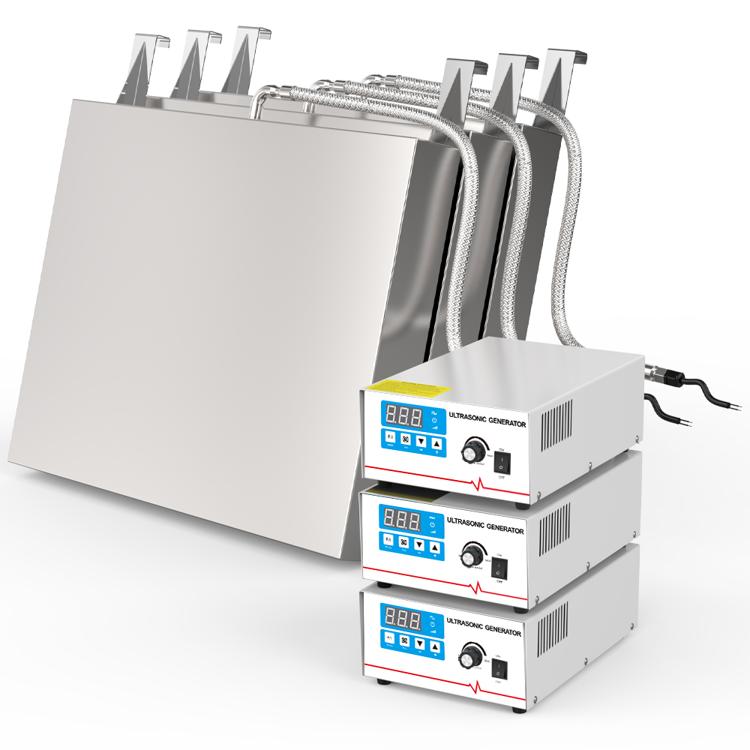

2400W Submersible Ultrasonic Vibrating Plate | Immersion Ultrasonic Cleaning Rust, Mixing, Extraction & Atomization Algae Removal

Ultrasonic cleaning technology has revolutionized industrial applications, providing efficient, non-destructive solutions for cleaning, extraction, and water treatment. Yunyisonic 2400W Submersible Ultrasonic Vibrating Plate is a high-performance system designed for heavy-duty industrial processes. With advanced 28/40kHz single or dual frequency optional, robust SUS304 stainless steel construction, and adjustable power control, it delivers superior cleaning, degreasing, and material processing capabilities.

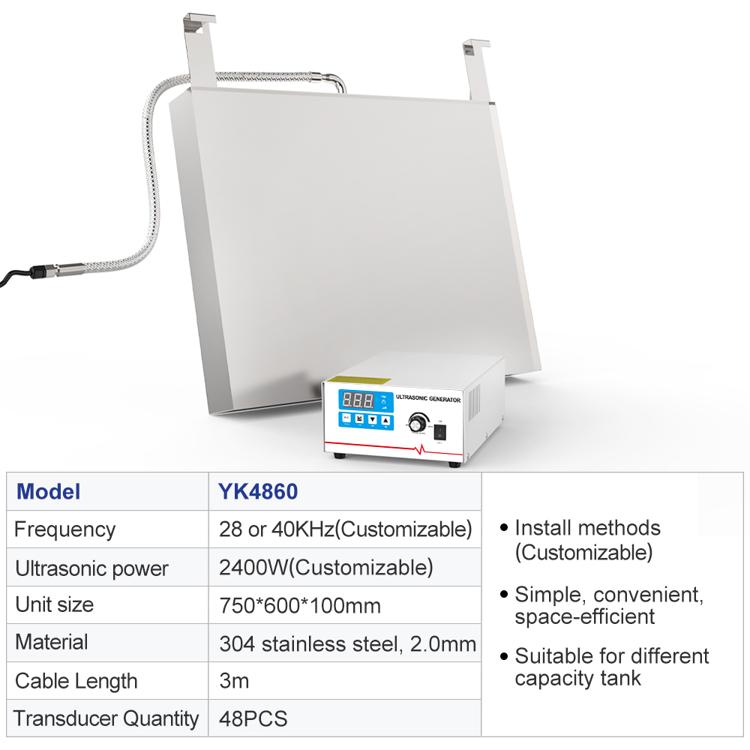

Specifications:

Remark:

We use industrial grade transducer with power, 50W for each transducer.

Transducers arrays working at 40 kHz are ideal for general purpose cleaning.
Higher frequencies of 28 kHz is more used for heavey duty items.

Material:
SUS304, 2.0mm;SUS316, 2.5mm.
If need other material or thicker, pls remark your needs.

Frequency:
If need other or dual frequency, pls feel free to contact us.
Frequency Operation: 28kHz for heavy-duty degreasing and 40kHz for precision cleaning.

Generator:
External, digital control

Installation:
The transducer plate can be installed at the base, sidewall, or top of the cleaning tank to accommodate different cleaning needs.

Cable Length: 3M
If need longer, pls remark your needs

Application:
Mixing, Emulsification, Extraction, Rust Removal, Liquid Defoaming ,Atomization, Algae Removal, Dissolving

OEM Ultrasonic Immersible Transducer Pack:
Size, Frequency,Power, Material Customized

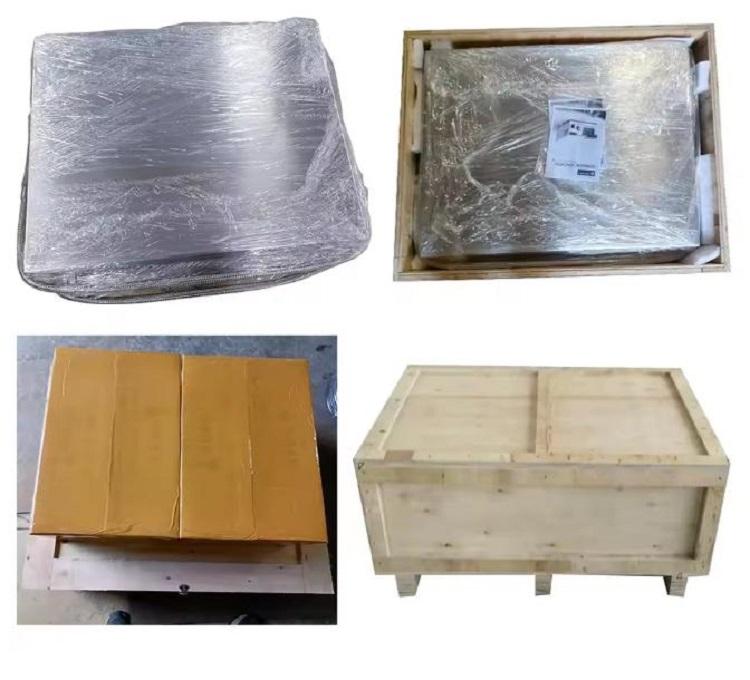

Transport Package:
Standard export carton Carton or wooden box

Package Content：
1 x Ultrasonic Generator
1 x Transducer Plate
1 x Instruction Manual
1 x Industrial Power Cord

Kindly Remind:
– Do not run the machine continuously for more than 30 minutes at a time.
– Do not operate the machine without fluid in the tank (water level is not higher than the water mark)
– Cleaning items should be put on cleaning basket to protect this machine.
– Do not spray water or liquid over the device and the control panel.
– Import duties, taxes and charges are buyer’s responsibility, not included in the price or shipping charge.
– Please add normal water into the tank before using, if you wanna better clean we advise to ass special chemical liquid when you use.
– All models will make the “zizizi” noise during cleaning, it’s normal.

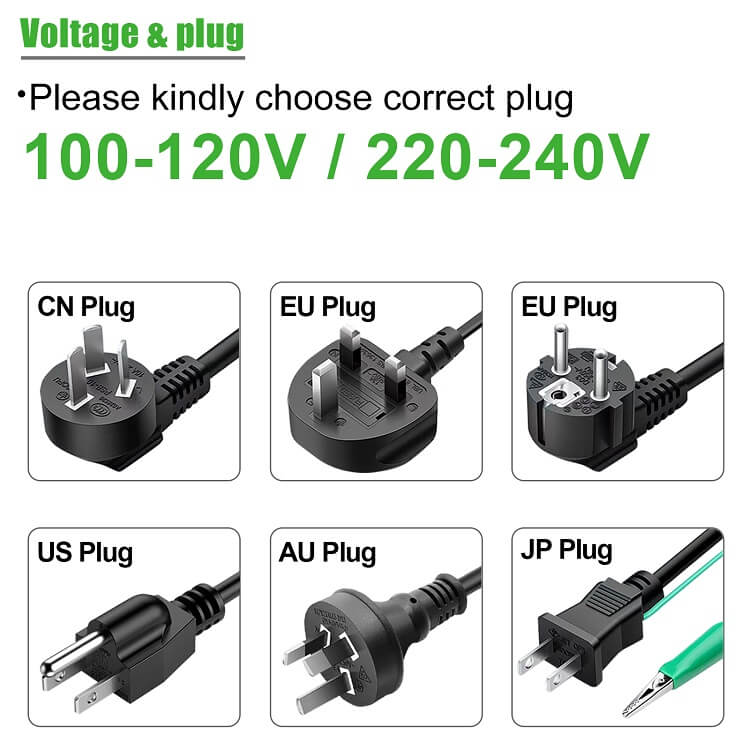

– Please choose the right voltage type and plug accoring to your country, we will not responsible for the problem caused by this.
– We provide four plugs with voltage: 220V-EU plug,220V-UK plug,220V-AU plug,110V-US plug,220V-US plug,220V-JP plug

Key Features of the 2400W Immersion Ultrasonic Vibrating Plate

1. High-Powered Ultrasonic Cleaning Performance

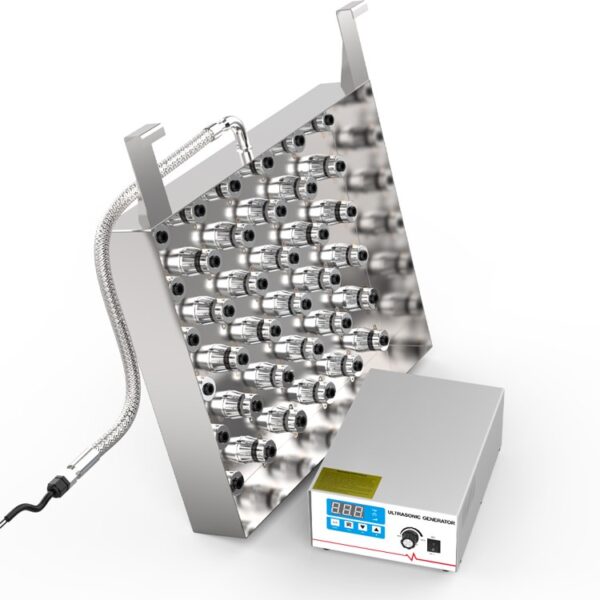

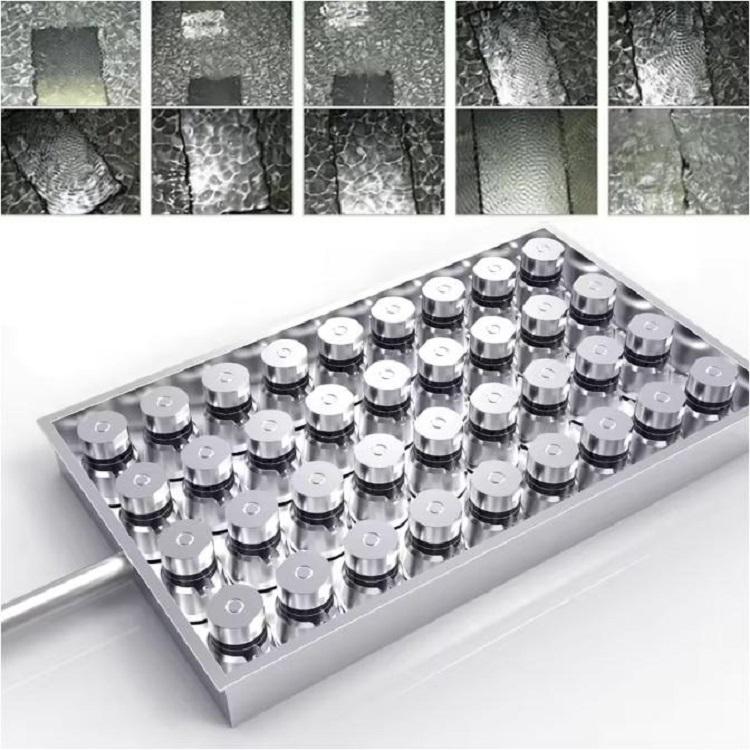

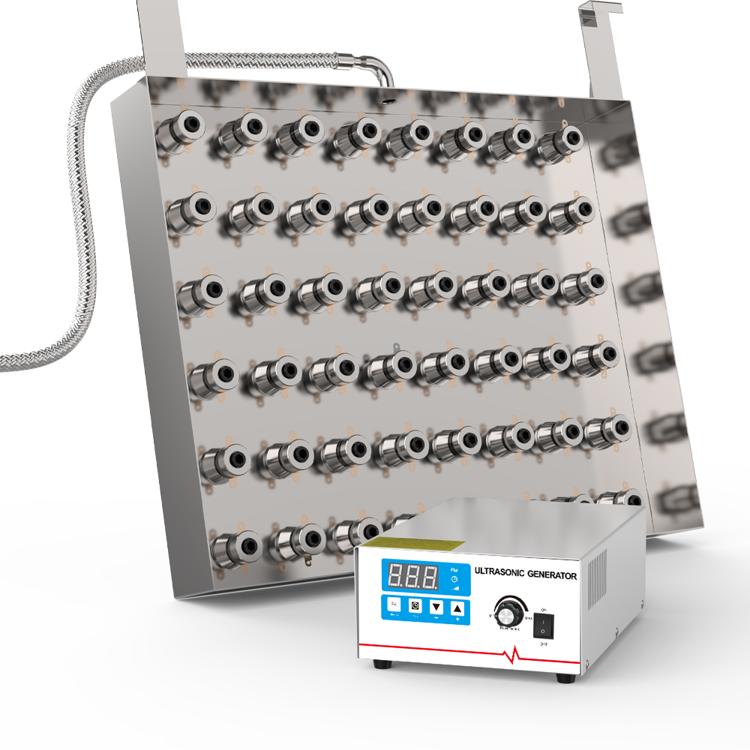

Equipped with 36 pcs industrial-grade transducers, this ultrasonic plate generates a power output of up to 2400W, ensuring deep and thorough cleaning. The frequency options (28kHz & 40kHz) provides flexibility:

– 28kHz: Ideal for heavy-duty cleaning, removing rust, grease, and carbon buildup.
– 40kHz: Suitable for fine and general cleaning, effectively eliminating contaminants from delicate components.

With adjustable power settings ranging from 0-100%, the system allows users to customize cleaning intensity for different materials and contaminants.

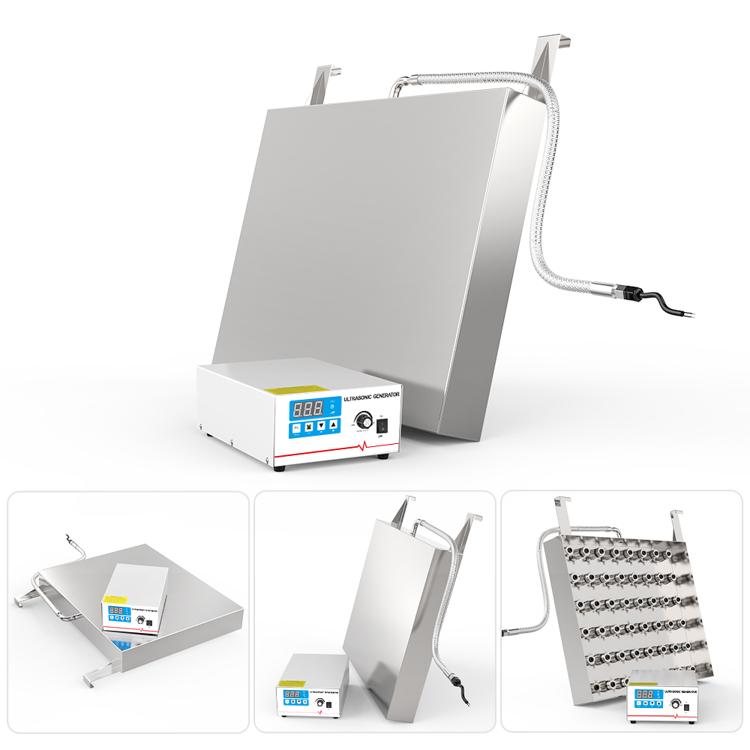

2. Durable SUS304 Stainless Steel Construction
Manufactured using 2.0mm-thick SUS304 stainless steel, the transducer plate is highly resistant to corrosion and chemical damage, ensuring long-term durability in harsh industrial environments. The structure is reinforced with steel bars and 10mm mesh holes, offering additional mechanical strength and uniform ultrasonic distribution.

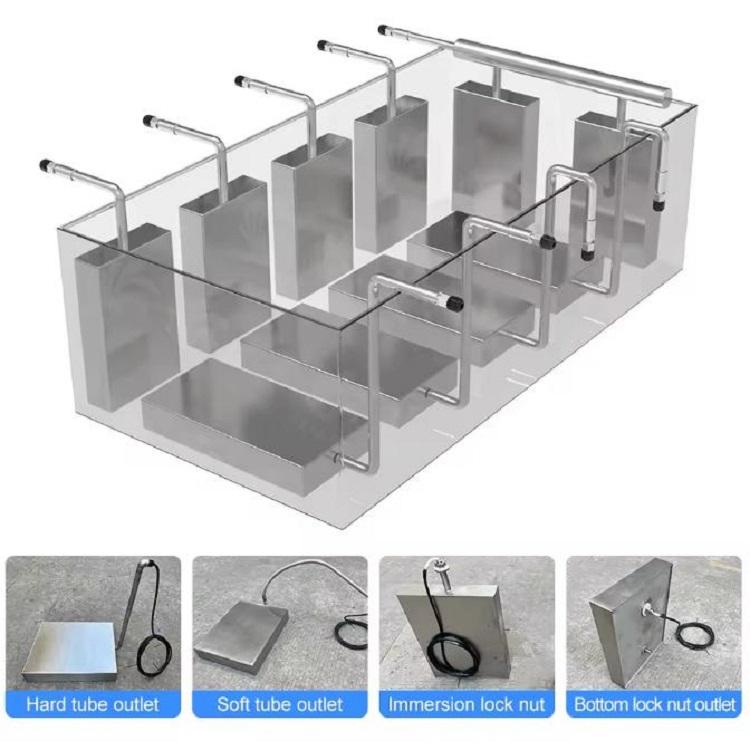

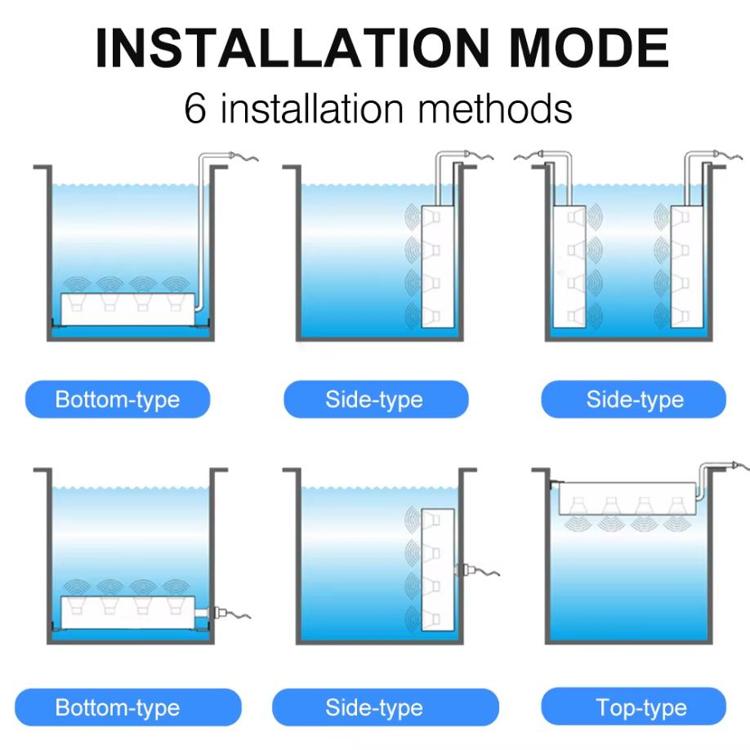

3. Versatile Installation Options for Various Applications
The submersible ultrasonic transducer plate offers multiple mounting options to suit different industrial settings:

– Bottom/Base-mounted: Ideal for general ultrasonic cleaning tanks.
– Sidewalls-mounted: Effective for applications requiring vertical ultrasonic wave propagation.
– Top-mounted: Used in specialized chemical processing and dispersion applications.

This flexibility allows the vibrating plate to integrate seamlessly into existing cleaning tanks, water treatment systems, and chemical reactors.

4. Applications Across Multiple Industries

Industrial Cleaning & Degreasing
The ultrasonic plate effectively removes oils, carbon deposits, and oxidation layers from engine parts, molds, and metal components. It enhances efficiency in automotive, aerospace, and manufacturing industries.

Chemical & Pharmaceutical Processing
Ultrasonic energy is used to accelerate chemical reactions, emulsify solutions, and extract bioactive compounds. It plays a crucial role in essential oil extraction, pharmaceutical mixing, and nanomaterial dispersion.

Water Treatment & Algae Control
The high-intensity ultrasonic waves disrupt biofilm formation, break down organic pollutants, and inhibit algae growth in lakes, rivers, and industrial wastewater treatment plants.

Food & Beverage Industry
Ultrasonic processing improves wine aging, emulsification of food ingredients, and sterilization of liquids without the need for chemical additives.

Electronics & Precision Cleaning
For circuit boards, semiconductors, and medical instruments, the 40kHz setting ensures safe and thorough decontamination without damaging delicate surfaces.

5. User-Friendly Operation & Safety Features
The system is designed for ease of use and long-term reliability, featuring:

– Digital Timer (1-99 minutes) for precise control.
– Industrial-grade power cable (3 meters) for flexible placement.
– Overheat protection & efficient cooling fans to maintain stable performance.
– Static-resistant, grounded power connections for enhanced safety

Why Choose a 2400W Immersion Ultrasonic Vibrating Plate?

This high-powered ultrasonic plate provides an eco-friendly, chemical-free alternative for industrial cleaning, material dispersion, and water treatment. With its adjustable frequency, durable construction, and multi-industry applications, it is an essential tool for businesses seeking efficiency, sustainability, and cost savings.

By integrating ultrasonic technology into industrial processes, companies can achieve superior cleaning, better material processing, and improved environmental management—all in a single, robust system.
